Ken Smith Basses

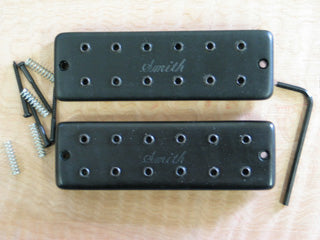

Smith Custom Bass Soapbar Humbucking Pickups - 6 String Model
6 wide model also available
Flat Tops now available in 4, 5 & 6-String
Dimension Chart
Please Note That All Dimensions Are Approximate
| 6 STRING | A | B | C | D | E |
|---|---|---|---|---|---|
| Neck | 11/16″- 17.5mm | 3 5/16″ 85mm | 4 3/4″ 121mm | 1 7/16″ 37mm | 9/16″ 14mm |
| Bridge | 11/16″+ 18mm | 3 7/16″ 88mm | 4 3/4″ 121mm | 1 7/16″ 37mm | 9/16″ 14mm |
| 6 WIDE MODEL | A | B | C | D | E |
|---|---|---|---|---|---|
| Neck | 11/16″+ 18mm | 3 1/2″ 88.5mm | 4 3/4″ 121mm | 1 7/16″ 37mm | 9/16″ 14mm |
| Bridge | 23/32″ 18.5mm | 3 5/8″ 92mm | 4 3/4″ 121mm | 1 7/16″ 37mm | 9/16″ 14mm |
