Ken Smith Basses

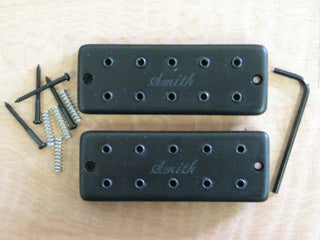

Smith Custom Bass Soapbar Humbucking Pickups - 5 String Model
5 wide model also available
Flat Tops now available in 4, 5 & 6-String
Dimension Chart
Please Note That All Dimensions Are Approximate
| 5 STRING | A | B | C | D | E |
|---|---|---|---|---|---|
| Neck | 11/16″- 17.5mm | 2 11/16″ 68mm | 4″ 102mm | 1 7/16″ 37mm | 9/16″ 14mm |
| Bridge | 11/16″+ 18mm | 2 13/16″ 71mm | 4″ 102mm | 1 7/16″ 37mm | 9/16″ 14mm |
| 5 WIDE MODEL | A | B | C | D | E |
|---|---|---|---|---|---|
| Neck | 11/16″+ 18mm | 2 13/16″ 71mm | 4″ 102mm | 1 7/16″ 37mm | 9/16″ 14mm |
| Bridge | 23/32″ 18.5mm | 2 7/8″ 73mm | 4″ 102mm | 1 7/16″ 37mm | 9/16″ 14mm |
